Why Lithium Plating Happens in LiFePO₄ Batteries (and Why It’s More Common Than You Think)

esteryeu (35)in #steemit • 21 days ago

Most LiFePO₄ users are told their batteries are “safe” and “stable.” That part is true — especially compared to other lithium chemistries.

But stability doesn’t mean immunity.

One of the most underestimated degradation mechanisms in real-world systems is lithium plating, and it tends to show up quietly in exactly the situations people assume are harmless.

This post focuses on why it happens, when it happens, and why it’s often a system problem rather than a chemistry limitation.

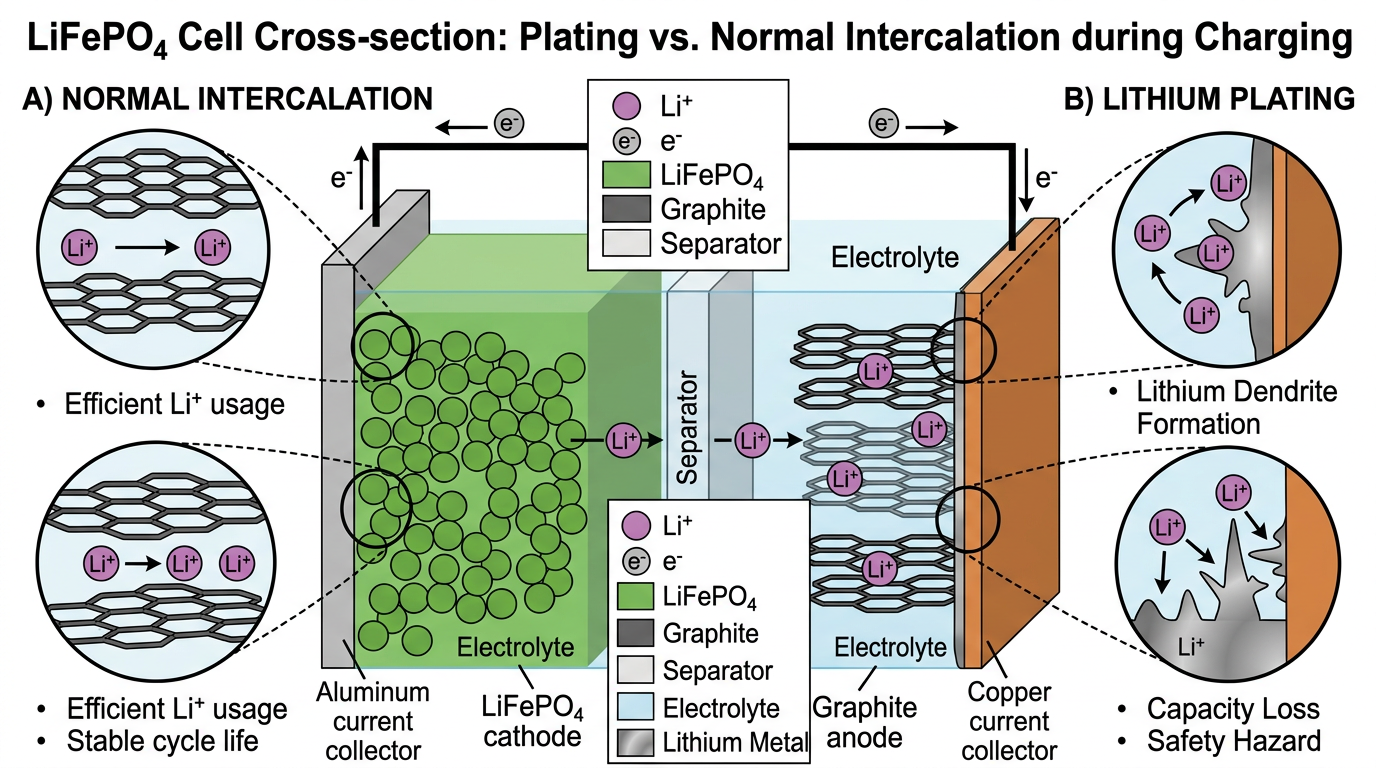

What lithium plating actually is (in simple terms)

Inside a healthy LiFePO₄ battery, lithium ions move smoothly between electrodes during charge and discharge.

Lithium plating happens when that process breaks down.

Instead of intercalating properly into the anode structure, lithium:

deposits as metallic lithium on the surface
accumulates in uneven layers
becomes electrochemically inactive over time

That means:

The battery is still “charged,” but part of the lithium is no longer usable.

Why it is not usually discussed as a “LiFePO₄ problem”

LiFePO₄ chemistry is considered more resistant to lithium plating compared to high-energy-density chemistries.

That leads to a common assumption:

“Plating is not something I need to worry about.”

In reality, the chemistry is only one part of the equation. The system conditions often matter more.

The 3 conditions that trigger lithium plating

Lithium plating does not happen randomly. It usually requires a combination of stress factors:

1. Low temperature charging

At low temperatures:

lithium diffusion slows down
internal resistance increases
reaction kinetics become uneven

When charging continues under these conditions, lithium cannot fully intercalate fast enough.

Result:

surface deposition begins

Even temperatures around 0–5°C can be enough in real systems.

2. High charge current

Fast charging sounds convenient, but it creates imbalance at the electrode surface.

If current is too high:

lithium arrives faster than it can be absorbed
surface saturation occurs
metallic deposition starts forming

This is why high C-rate charging is more sensitive in cold environments.

3. High state-of-charge charging near the top end

Plating risk increases when the battery is:

above ~90% SOC
approaching upper voltage limits (3.45–3.65V per cell)

At high SOC:

electrode acceptance slows down
overpotential increases
reaction efficiency drops

This creates a “traffic jam” effect at the electrode surface.

Why winter is the most dangerous operating period

In real-world systems (especially Europe), lithium plating risk peaks in winter because multiple conditions stack together:

low ambient temperature
reduced solar input
higher reliance on grid or generator charging
longer charging windows at low temps
user behavior pushing full recharge cycles

This combination is far more important than any single parameter.

Why the damage is often invisible at first

Lithium plating is dangerous because early-stage symptoms are subtle:

slight capacity reduction
small increase in internal resistance
reduced usable energy at high load
minor imbalance drift

It does not immediately look like failure.

Instead, it looks like:

“The battery is aging a bit faster than expected.”

The key difference: reversible vs irreversible lithium

Not all lithium loss is equal.

Intercalated lithium → usable energy
Plated lithium → partially or fully inactive

Some plated lithium can be stripped back under ideal conditions, but in real systems:

repeated cycling
uneven temperature
imperfect BMS control

…make full recovery unlikely.

Over time, this leads to permanent capacity loss.

Why BMS protection is not enough on its own

Most modern BMS systems include:

low-temperature cutoffs
charge current limits
voltage protection thresholds

But lithium plating is tricky because it is:

condition-dependent (not single-threshold based)
cumulative (builds up over cycles)
partially invisible in real-time monitoring

So even a well-protected system can still experience plating if operational conditions align.

A common real-world scenario

A typical failure pattern looks like this:

Battery charges normally during warm months
Winter arrives, temperature drops
System continues charging at similar current
SOC regularly pushed near 100%
No obvious alarms or shutdowns occur
After 1–2 seasons, capacity noticeably drops

From the outside, it looks like “natural degradation.”

Inside the cells, it is often:

repeated low-temperature lithium plating events.

Why system design matters more than chemistry marketing

The important takeaway is not that LiFePO₄ is fragile — it isn’t.

The issue is that:

chemistry defines limits
system design defines how often you hit those limits

Plating is a good example of this gap.

It is not a “battery defect.”
It is usually a usage-condition mismatch.

Practical operating principles (non-marketing version)

Without turning this into a checklist, the logic is simple:

avoid high-current charging at low temperature
reduce aggressive top-end charging cycles in cold conditions
allow the system to warm up before full charging when possible
design charging profiles around environment, not just voltage

These are system-level decisions, not product specs.

Why this matters for long-term storage systems

In residential and off-grid setups, batteries are expected to last years, not months.

Lithium plating is one of the mechanisms that silently reduces that expectation gap.

It doesn’t cause sudden failure.

It reduces:

usable capacity
cycle efficiency
long-term predictability

That makes it one of the most economically relevant degradation modes in real deployments.

Closing thought

LiFePO₄ is stable, but stability is not the same as immunity.

Lithium plating is a good reminder that most battery problems do not come from extreme conditions — they come from moderate conditions repeated in the wrong context.

Understanding that difference is often what separates short-lived systems from long-lived ones.
